07-13 Toyota Tundra 4" Bulge TT Style Off Road Fiberglass Bedsides - 6.5 Bed
- Unit price
Part # TU-B-22

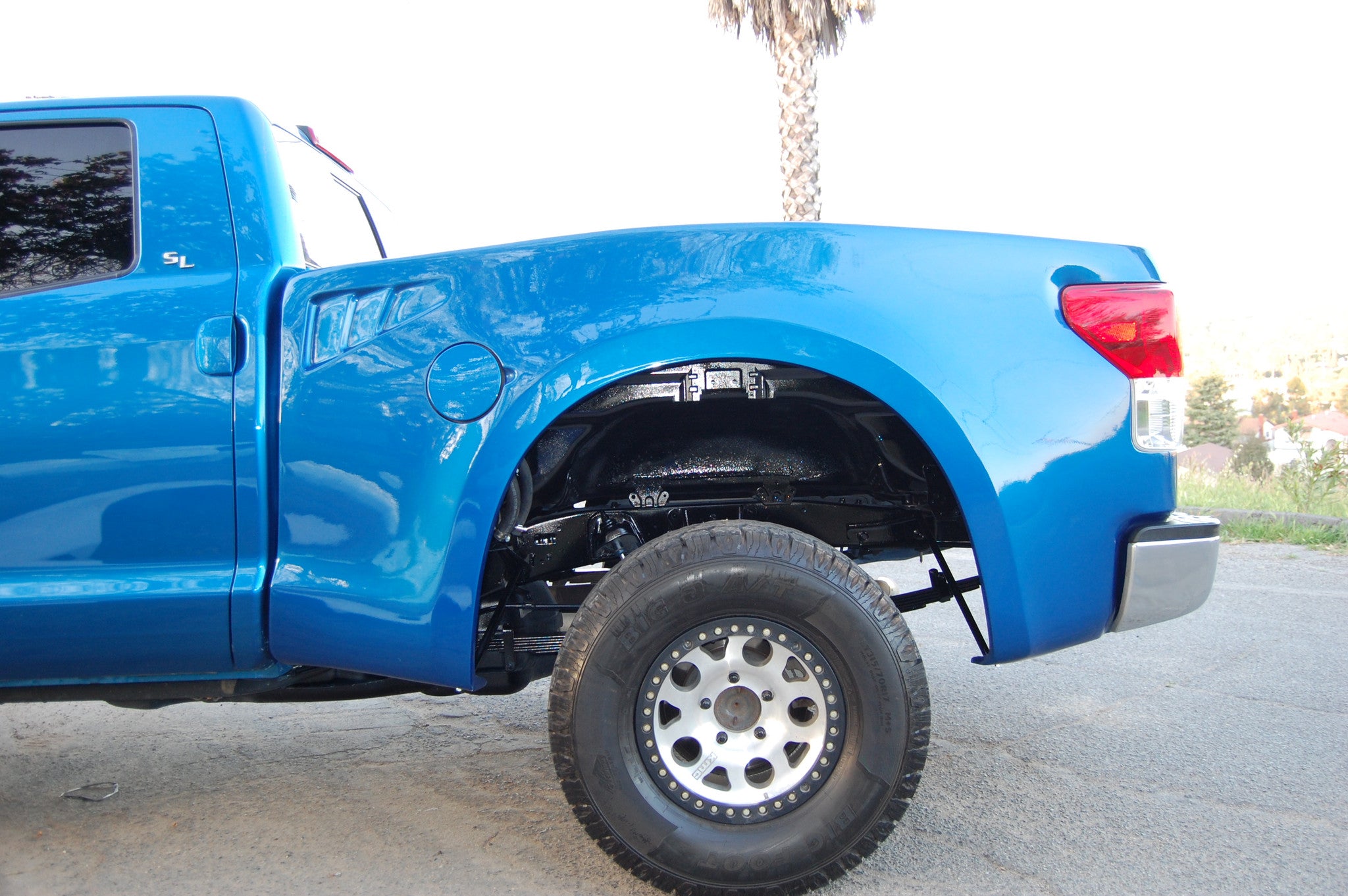

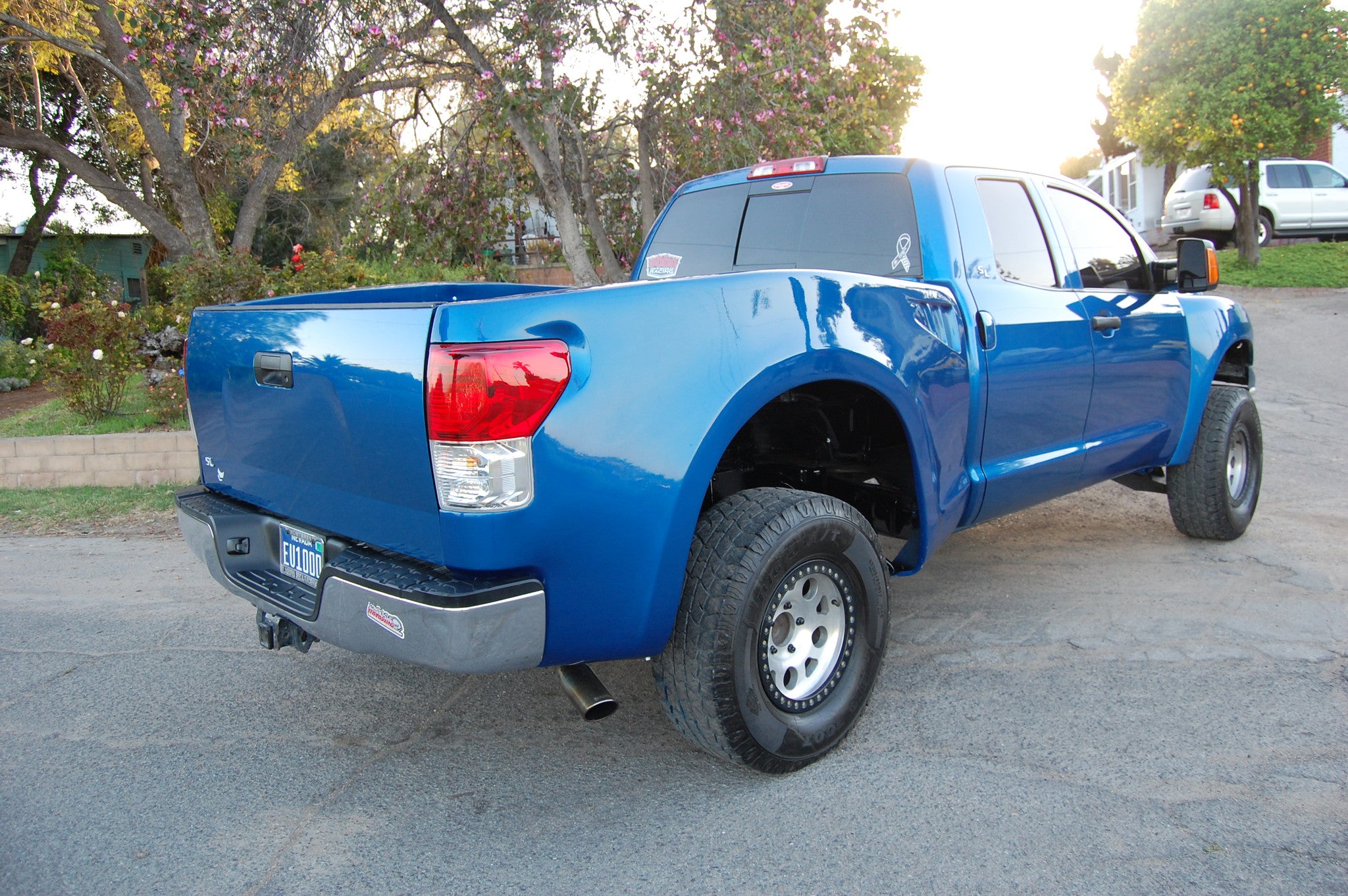

Our 2007-2013 Toyota Tundra 4" trophy truck style fiberglass bedsides are a great addition to long bed trucks with serious long travel suspension. These bedsides are 4" wider than factory, providing additional tire coverage and plenty of room for up-travel of the rear axle.
NOTE: These are for 6.5' long bed extra cab trucks only!
- Fitment for up to 35" tires
- 4” wider flare than stock
- 2” larger wheel well opening
- Retains use of factory tailgate and taillights
Modifications Required for Install
- Fabricated bedside supports
- extension of fuel filler hose if applicable
ALL PARTS COME FINISHED IN A WHITE GEL COAT.
ALL PARTS MUST BE MOUNTED BEFORE ANY PAINTING TAKE PLACE.
Price is for the pair
